CMS-P Pluse Oximeter

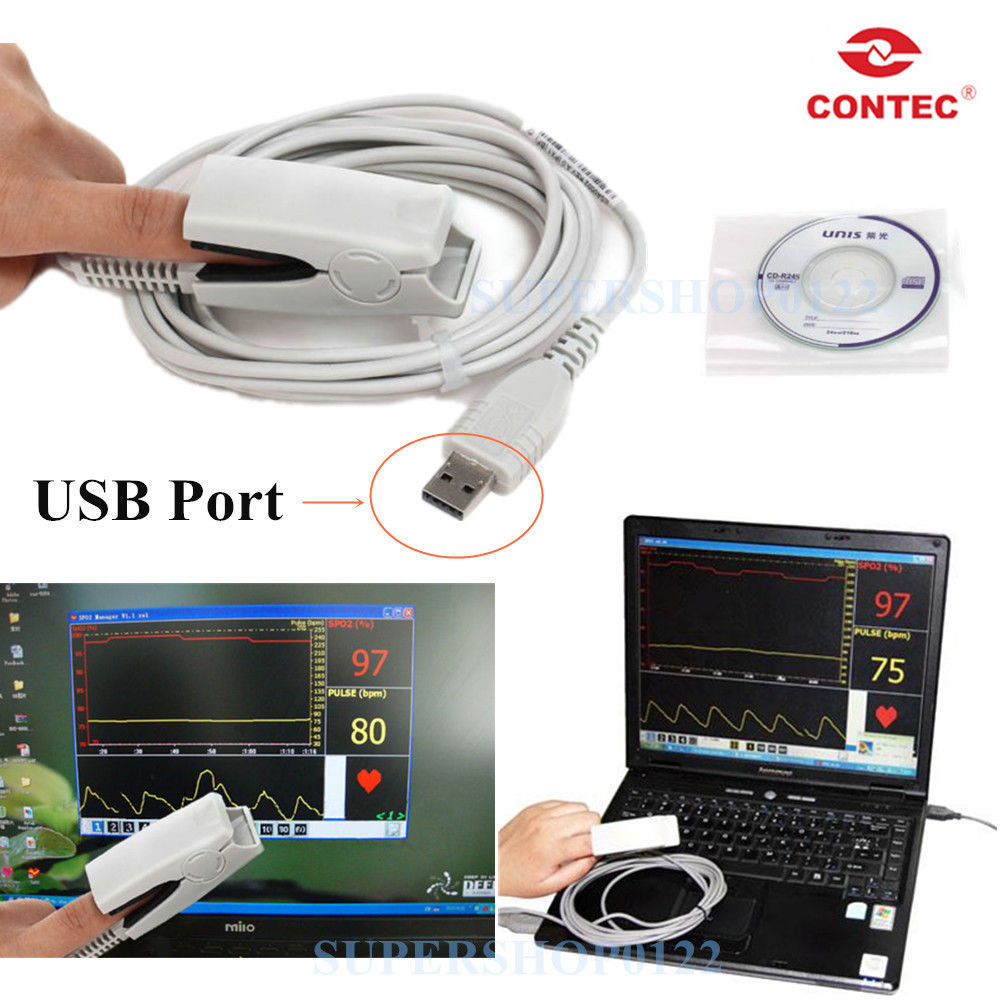

With USB interface，the product can connect with PC;

The PC software is compatible with other oximeter product of CMS system;

With high precision measuring circuit,the measuring result is exact and credible;

Light weight,small size,easy to carry.

Primary Parameter

The Pulse Oxygen Saturation（SpO2）Measuring

■ Measuring range：0%～100％

■ Accuracy：70%～99%：±2% ；Below 70% unspecified.

Pulse Rate Measuring

■ Measuring range:25bpm～250bpm

■ Accuracy：±2bpm or±2% (select larger)

the resolution：

■ SpO2 is 1%; PR is 1bpm.

Measurement Performance in Weak Filling Condition:

■ SpO2 and pulse rate can be shown correctly when pulse-filling

ratio is 0.4%. SpO2 error is ±4%;pulse rate error is ±2 bpm

or ±2% (select larger).

Resistance to surrounding light:

■ The deviation between the value measured in the condition of

man-made light or indoor natural light and that of darkroom is

less than ±1%.

Work Environment Requirement

■ Environment temperature: 0℃～50℃

■ Relative humidity: 15%～95%

■ Atmospheric pressure: 700hPa～1060hPa

Package Content:

- 1 Spo2 main unit with USB cable

- 1 CD Software: 1 real time display software with Alarm and Setting

- 1 Sleep Study Software and Report System

- 1 User manual in PDF
